Medium Frequency Induction Heating Equipment

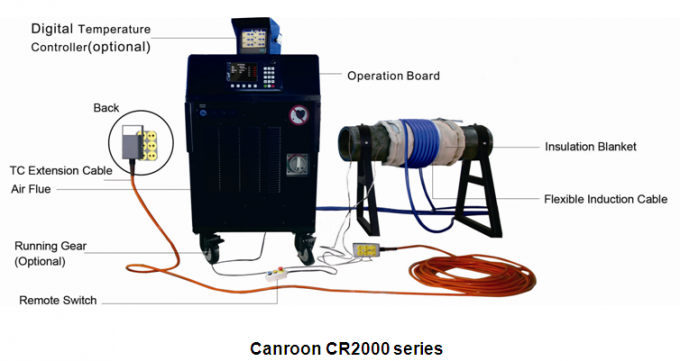

Overall pictures of medium frequency induction heating equipment:
Canroon is China leading manufacturer of induction heating
equipment. Our CR2000 series can be used for welding preheat, PWHT,
joint anti-corrosion coating, in offshore platform, oil and gas
pipeline, steel bridge construction and repair, power plant, etc
For CR2000 series, we have portable type: 5KVA, 10KVA, and movable
type: 40KVA, 80KVA, 120KVA. Following is pictures of movable type.
Technical parameters of medium frequency induction heating
equipment:
Model
| Temperature | Input Power | Input | Output | Dimension | Weight |
| CR2000-040 | 788℃ | 40KVA | 3-phases
380V-460V
50-60Hz
50-61A | 35KW
3-35KHz
Duty Cycle: 100% | H:762mm
W:544mm
L:730mm | 115kg |
| CR2000-080 | 788℃ | 80KVA | 3-phases
380V-460V
50-60Hz
100-121A | 72KW
2.3-35KHz
Duty Cycle: 100% | H:845mm
W:592mm
L:801mm | 190kg |
| CR2000-120 | 788℃ | 120KVA | 3-phases
380V-460V
50-60Hz
150-181A | 108KW
2.5-35KHz
Duty Cycle: 100% | H:845mm
W:592mm
L:801mm | 190kg |
Applications of induction heating equipment:
We use induction cables winding around the pipes, you can wind it
according to your pipe size, and heating temperature, and also
other detailed requirements. So it is flexible. There are
insulation blankets to protect the cable from overheat. For welding
two pipes together, two insulation blankets will be needed, each
pipe has one blanket. For welding, there will be welding slag, so
the blanket also can protect the heating process. The size and
material of the insulation blanket are optional. Length and size of
induction cable are optional too.
Induction heating equipment can be connected with following
different types of inductors:
C type inductor(usually for pipe welding preheat), blanket type inductor(usually for pipe welding preheat, PWHT), plate type inductor(usually for pipe welding preheat), split core type inductor(manual & hydraulic)(usually for joint anti-corrosion coating).
Features of medium frequency induction heating equipment:
Friendly Interface and Accurate Control
Various Control Mode
Fault Record
Easy Maintenenace
Self Diagnosis
High Efficiency
Uniform Heating
Replaceable Heating Inductor
Accessories of medium frequency induction heating equipment:
We offer multiple accessaries like thermocouple, thermocouple welding machine, digital
temperature-recorder, remote switchgear, output extension cable,
insulation blanket, etc. Complete solution saves your time and ensures you to start work
soon after received our delivery.
