Portable Medium Frequency Induction Heating Machine
Brand: Canroon(China manufacturer)
Power:5KVA, 10KVA, can also supply 40KVA, 80KVA, 120KVA
Frequency:3-35kHZ
Heating temperature: can be high as 788℃
Voltage: 220-240V, 1 phase, 50/60HZ,
Suitable pipe size: 30-300mm diameter, less than 25mm thickness,
cooling system: air cooling
Application industries: offshore platform, power station, oil and gas pipeline
construction, etc
Applications: PWHT/ post weld heat treatment, pipe welding preheat, joint anti-corrosion coating, etc
Features: small, portable, digital control, self-fault diagnosis, modular
design, fault code feedback, etc
Picture of portable medium frequency induction heating machine:
Parameters of portable medium frequency induction heating machine:
| Model | Temperature | Input Power | Input | Output | Dimension | Weight |
| CR2000-005B-12SF2 | 788℃ | 5kVA | 1-phase
220-240V
50-60Hz
20.8-22.7A | 4.2kW
5-60 KHz
duty cycle 100% | W:242.9mm
H:295.2mm
D: 504.4mm | 16kg |
| CR2000-005B-14TF1 | 788℃ | 5kVA | 3-phase
380-460V
50-60Hz
6.3-7.6A | 4.5kW
3-35 KHz
duty cycle 100% | W:263mm
H:302mm
D:535mm | 18.6kg |
| CR2000-010B-14TF1 | 788℃ | 10kVA | 3-phase
380-460V
50-60Hz
12.5-15A | 9kW
3-35 KHz
duty cycle 100% | W:263mm
H:302mm
D:535mm | 18.6kg |
Application details of portable medium frequency induction heating
machine:

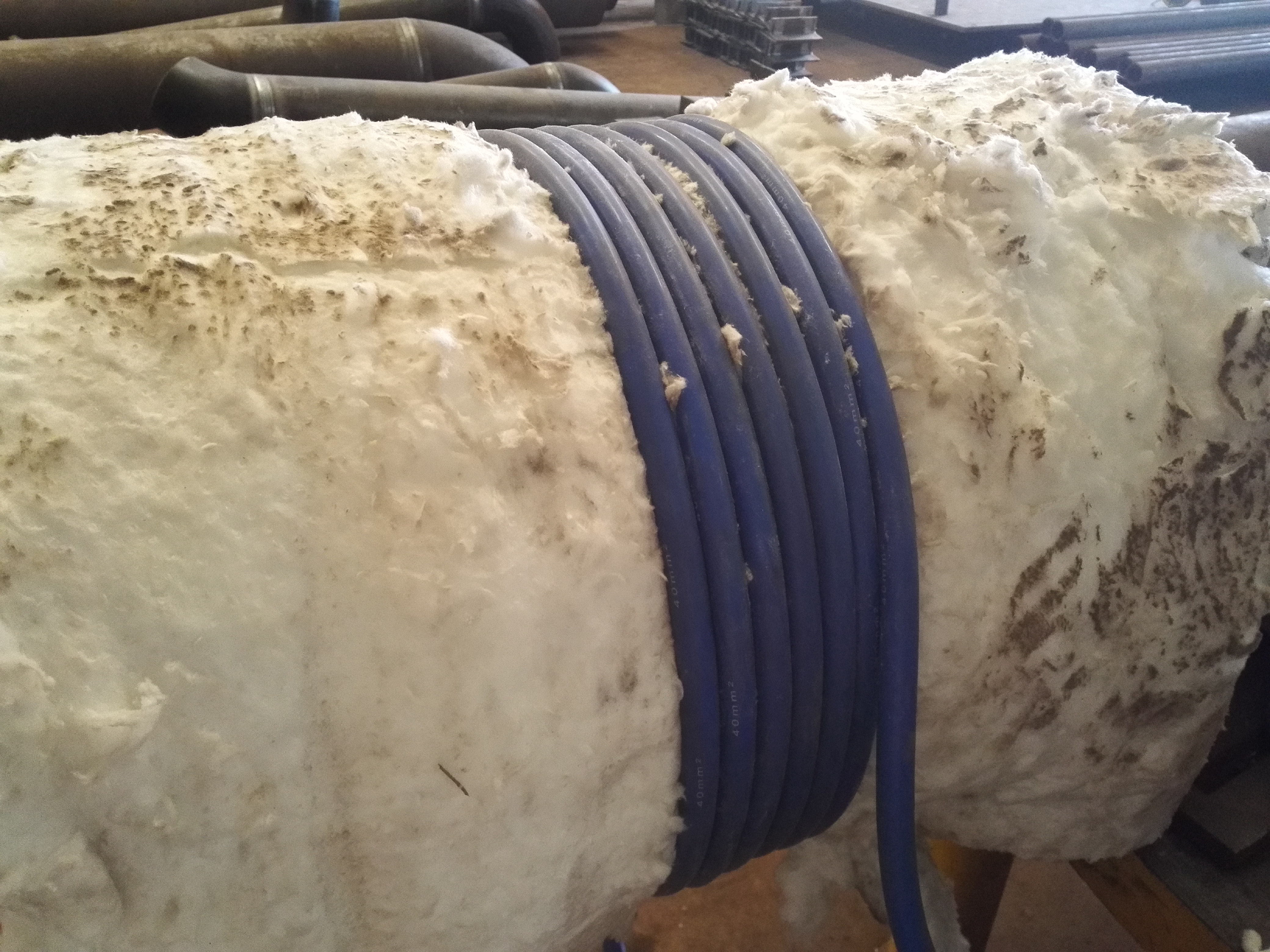

Induction heating machine for post weld heat treatment, portable
size, easy to handle,
Accessories of portable medium frequency induction heating machine:
We offer multiple accessaries like thermocouple, thermocouple welding machine, digital
temperature-recorder, remote switchgear, output extension cable,
insulation blanket, etc. Complete solution saves your time and ensures you to start work
soon after received our dellivery.
Advantages of portable medium frequency induction heating machine:
We have display panel to show working parameters, and temperature
recorder can feedback PWHT curve, you can print it.
The interface offers two basic control mode to choose including temperature control and power control. Thus brings the benefit of wide applicability and precise
control.
Fault codes will display and be recorded for reference, and system
will respond with protection action like shutdown once fault occurs
such as open-loop output or short out.
Due to modular design, the maintance will be easy and low-cost.
Once fault occurs, induction heater will display fault code, which
was detailed explained in manual book.
This uniquely energy-efficient process converts up to 90% of the
expended energy into useful heat, and time-to-temperature is faster
than conventional processes, reducing cycle time.
The heat is induced within the part itself by alternating
electrical current, thus uniform temperature throughout the heating
zone is realized.
