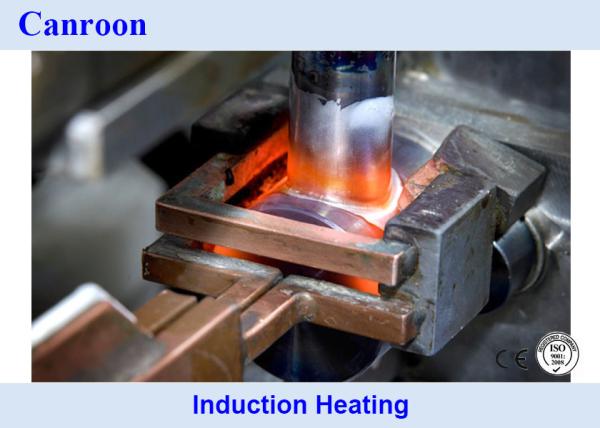

Portable Induction Welding Machine for Copper Silver Brazing

CR2100 series portable induction heating machine is designed and manufactured by Canroon, for rapid heating to low permeability metal such as stainless steel, copper, aluminum, titanium.

Application:

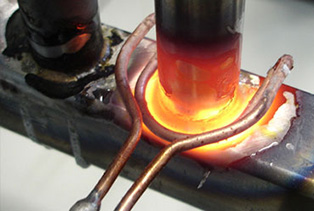

◆　Brazing　◆　Hardening　◆　 Shrink Fitting　◆　Bolt Untighten　◆　Straightening　◆　Curing　

◆　Paint / Coating Removal　 ◆　Annealing　 ◆　......

Hand-held transformer

Hand-held transformer are designed for your easy manual manipulation, and also can be integrated into robot arm for automatic production.

Induction coils are easy for assemble and dismantle from hand-hold transformer, so you can connect with different coil for different application.

Two control buttons:

1. trigger: pull to start heating, loose to stop heating;
2. button: lock the trigger (pull the trigger and press the button, heating will be continuous.

Specification:

Model NO.	Input	Output	Cooling water pressure/ flow rate	Dimension (mm)	appearance	IP degree
CR2100-010B-14TW1	power:10KVA voltage:3-phase/400V freq.:50-60Hz current:15A	power:8kW (duty cycle100%) freq.:10-40KHz	4~6 bar, ≥12L/min	L:581.5 W:283 H:334		IP23
CR2100-015B-14TW1	power:15KVA voltage:3-phase/400V freq.:50-60Hz current:22A	power:12kW (duty cycle100%) freq.:10-40KHz				IP23
CR2100-020B-14TW1	power:20KVA voltage:3-phase/400V freq.:50-60Hz current:30A	power:16kW (duty cycle100%) freq.:10-40KHz				IP23
CR2100-025B-14TW1	power:25KVA voltage:3-phase/400V freq.:50-60Hz current:37A	power:20kW (duty cycle100%) freq.:10-40KHz				IP23
CR2100-030B-14TW1	power:30KVA voltage:3-phase/400V freq.:50-60Hz current:45A	power:24kW (duty cycle100%) freq.:10-40KHz	4~6 bar, ≥19L/min			IP23
CR2100-035B-14TW1	power:35KVA voltage:3-phase/400V freq.:50-60Hz current:53A	power:28kW (duty cycle100%) freq.:10-40KHz				IP23
CR2100-040B-14TW1	power:40KVA voltage:3-phase/400V freq.:50-60Hz current:60A	power:32kW (duty cycle100%) freq.:10-40KHz				IP23
CR2100-050B-14TW1	power:50KVA voltage:3-phase/400V freq.:50-60Hz current:75A	power:40kW (duty cycle100%) freq.:10-40KHz				IP23
