    Black Portable Thermocouple Spot Welder Machine , Fine Wire Welder Efficiency

    Ask Lasest Price
    Brand Name : Canroon
    Certification : CE ISO9001:2008
    Delivery Time : A week after confirmed payment
    Payment Terms : L/C,T/T,Western Union
    Supply Ability : 100 Piece/Pieces per Week
    Model Number : CR100
    • Product Details
    • Company Profile

    Black Portable Thermocouple Spot Welder Machine , Fine Wire Welder Efficiency


    Black Portable Thermocouple Spot Welder Machine , Fine Wire Welder Efficiency

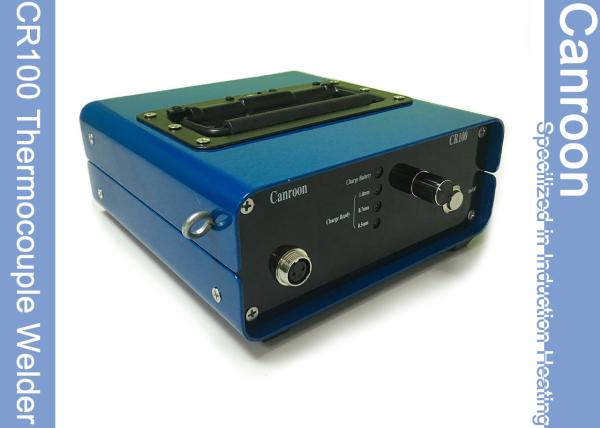

    CR100 portable thermocouple welder ensures a firm conjuction of thermocouple and workpieces (like steel pipe), which is very important for an accurate temperature measurement and feedback.


    This handy machine have 3 power level for choice with LED indicator, in accordance with thermcouple size 0.5mm / 0.7mm / 1.0mm.


    Feastures:


    • Firm conjuction between thermocouple and workpieces (vital for accurate temperature measurement);
    • one-hand operation, welding finished after 3 seconds of contact between thermocouple and workpiece;
    • Max. penetration depth <0.2mm, max. heating penetration depth <0.3mm;
    • Strong electric storage ability enable 2000 times of using after fully charged;
    • Just 10 seconds for circuit recovery after one time spot welding;
    • Charging limitation, no need for watching when charging;
    • LED display enables visual run state management;
    • Protection for over discharge.

    Specification:


    Charge Voltage100-240VAC, 50/60Hz
    Accumulator Working Voltage12VDC 50/60Hz
    Accumulator Capacity3.2Ah
    Automatic Spot Welding time3 seconds
    Recover / Charging time10 Seconds
    Charging State DisplayLED
    Max. Penetration Depth<0.2mm
    Max. Heating Penetration Depth<0.3mm
    Thermocouple Size0.5mm / 0.7mm / 1.0mm

    Size & Weight:


    HightWidthDepthWeight
    74mm185mm188mm2.7kg

    Package:


    Hand-held Outdoor Case / Safety Equipment Case

    Gross Weight: 5.6KG
