Digital Control IGBT Induction Brazing Machine , Induction Welding

Ask Lasest Price
Brand Name :	Canroon
Certification :	CE ISO9001:2008
Model Number :	CR2100
Price :
Delivery Time :	A week after confirmed payment
Payment Terms :	T/T
Supply Ability :	20 Piece/Pieces per Week

Add to Cart

Product Details
Company Profile

Digital Control IGBT Induction Brazing Machine , Induction Welding

Digital Control IGBT Induction Brazing Machine , Induction Welding

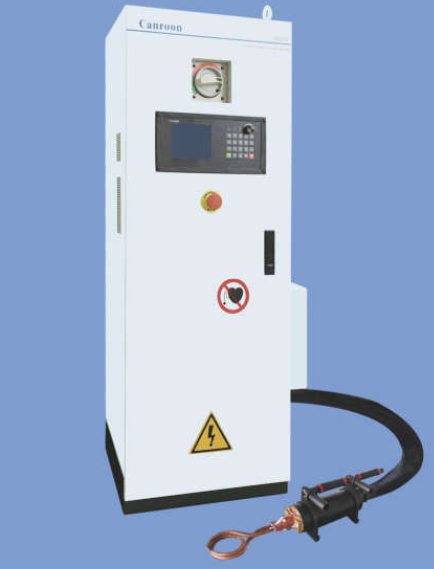

CR2100 is our water cooling system with detachable induction coil.

With different coil, CR2100 can realize different applications like brazing, hardening, annealing, bolt untighten, paint removal, straightening, etc.

Characters:

Hand held transformer

Hand-held transformer are designed for your easy manual manipulation, and also can be integrated into robot arm for automatic production.

Detachable coils

Induction coils are easy for assemble and dismantle from hand-hold transformer, so you can connect with different coil for different application.

High temperature

>1000℃

Fast/Rapid heating

with enough power, targed temperature can be reached within seconds.

For various material

Steel, stainless steel, copper, aluminum, titanium, etc

Various application

Specification:

Model NO.	Input	Output	Cooling water pressure/ flow rate	Dimension (mm)	appearance	IP degree
CR2100-010B-14TW1	power:10KVA voltage:3-phase/400V freq.:50-60Hz current:15A	power:8kW (duty cycle100%) freq.:10-40KHz	4~6 bar, ≥12L/min	L:581.5 W:283 H:334		IP23
CR2100-015B-14TW1	power:15KVA voltage:3-phase/400V freq.:50-60Hz current:22A	power:12kW (duty cycle100%) freq.:10-40KHz				IP23
CR2100-020B-14TW1	power:20KVA voltage:3-phase/400V freq.:50-60Hz current:30A	power:16kW (duty cycle100%) freq.:10-40KHz				IP23
CR2100-025B-14TW1	power:25KVA voltage:3-phase/400V freq.:50-60Hz current:37A	power:20kW (duty cycle100%) freq.:10-40KHz				IP23
CR2100-030B-14TW1	power:30KVA voltage:3-phase/400V freq.:50-60Hz current:45A	power:24kW (duty cycle100%) freq.:10-40KHz	4~6 bar, ≥19L/min			IP23
CR2100-035B-14TW1	power:35KVA voltage:3-phase/400V freq.:50-60Hz current:53A	power:28kW (duty cycle100%) freq.:10-40KHz				IP23
CR2100-040B-14TW1	power:40KVA voltage:3-phase/400V freq.:50-60Hz current:60A	power:32kW (duty cycle100%) freq.:10-40KHz				IP23
CR2100-050B-14TW1	power:50KVA voltage:3-phase/400V freq.:50-60Hz current:75A	power:40kW (duty cycle100%) freq.:10-40KHz				IP23
CR2100-060B-14TW1	power:60KVA voltage:3-phase/400V freq.:50-60Hz current:91A	power:48kW (duty cycle100%) freq.:10-40KHz	4~6 bar, ≥25L/min	L:475.5 W:456 H:1290.5		IP23
CR2100-080B-14TW1	power:80KVA voltage:3-phase/400V freq.:50-60Hz current:121A	power:64kW (duty cycle100%) freq.:10-40KHz	4~6 bar, ≥25L/min			IP23
CR2100-100B-14TW1	power:100KVA voltage:3-phase/400V freq.:50-60Hz current:152A	power:80kW (duty cycle100%) freq.:5-25KHz	4~6 bar, ≥35L/min			IP23
CR2100-120B-14TW1	power:120KVA voltage:3-phase/400V freq.:50-60Hz current:182A	power:96kW (duty cycle100%) freq.:5-25KHz	4~6 bar, ≥35L/min			IP23
CR2100-160B-14TW1	power:160KVA voltage:3-phase/400V freq.:50-60Hz current:243A	power:128kW (duty cycle100%) freq.:5-25KHz	4~6 bar, ≥50L/min	L:671.5 W:780 H:1986.5		IP23
CR2100-200B-14TW1	power:200KVA voltage:3-phase/400V freq.:50-60Hz current:303A	power:160kW (duty cycle100%) freq.:5-25KHz	4~6 bar, ≥50L/min			IP23
CR2100-250B-14TW1	power:250KVA voltage:3-phase/400V freq.:50-60Hz current:380A	power:200kW (duty cycle100%) freq.:5-25KHz	4~6 bar, ≥60L/min			IP23
CR2100-300B-14TW1	power:300KVA voltage:3-phase/400V freq.:50-60Hz current:456A	power:240kW (duty cycle100%) freq.:5-25KHz	4~6 bar, ≥60L/min			IP23
