Power:10-50kw

Applications:metal brazing, annealing, hardening, straightening, curing, paint removal, etc

Frequency:10-40kHZ

Voltage: 3phase, 380-460V, 50/60HZ,

Certificates: ISO, CE, etc

Application industries: aviation, metallurgy, tools and equipment, automotive, etc

Suitable metals: nearly all conductive metals like copper, steel, iron, brass, aluminum, etc

Features: built-in chiller, HHT, universal wheels, digital control, self-fault diagnosis, modular design, etc

Technical parameters of IGBT induction heating machine/induction brazing equipment:

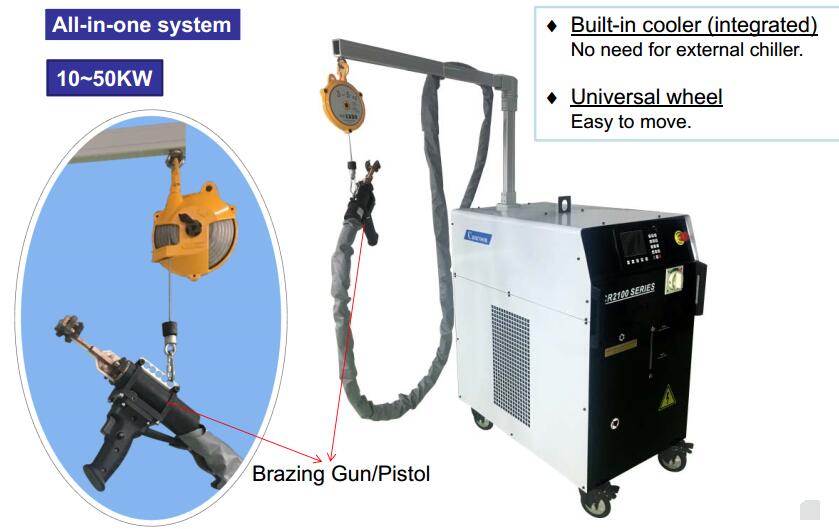

Overall pictures of IGBT induction heating machine/induction brazing equipment:

Canroon is China leading manufacturer of induction heating machine, our CR2100 series are especially designed for metal brazing, with water cooling system built-in, it will be more convenient when real-site working. The main structure concerns: induction heating machine, water cooling system, universal wheels, hanger, soft induction cable, HHT, detachable inductor.

Applications of IGBT induction heating machine/induction brazing equipment:

Our induction heating machine can be applied in many metal industries, and suitable for nearly all metals like copper, steel, iron, brass, aluminum, etc, with fast and uniform heating, and good performance, induction heating is more and more popular in industry that requires for more automatic and new advanced technologies. Take motor spare parts brazing as an example, we did induction brazing for copper wire, steel bar, short circuit, rotor bar, rotor coil, copper tube, etc, so can be used for motor manufacturer or repair and maintenance.

See the following pictures of the working site:

HHT (hand held transformer)&Inductors

Advantages of IGBT induction heating machine/induction brazing equipment:

· High Temp. & Fast Heating

Able to reach >1000℃ within seconds.

· Easy Operation

CR2100 can be easily start&stop manually, and scan on workpieces surface to do local heating. It can also be integrated into robot arm to serve automatic line.

· Accurate Control

The interface offers two basic control modes to choose including temperature control and power control. Thus brings the benefit of wide applicability and precise control of heating process.

· Fault Record

Fault codes will display and be recorded for reference, and system will respond with protection action like shutdown once fault occurs such as open-loop output or short out.

· Easy Maintenance

Due to modular design, the maintenance will be easy and low-cost.

· Self-Diagnosis

Once fault occurs, CR2100 will act with display of fault code, which was detailed explained in the manual book.

· Customized Inductor

Canroon provided high-standard customized inductor to CR2100 induction generator, to help you deal with workpieces of different shap&size.
