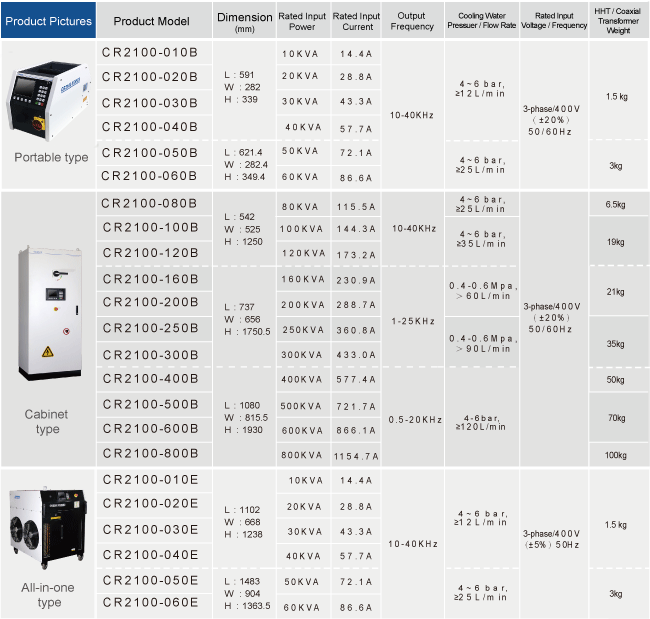

Technical parameters of induction heat treatment system/induction heating power supply:

Canroon offer custom service for clients.

Each inductor are designed specially for client’s specific application case, to ensure a perfect matching with
the workpieceand CR2100 power source, and manufactured in high-standard craft to ensure its performance
and robust quality.

Inductor is essential to the induction heating process, and many factors contribute to a coil’s effectiveness.
It’s important toinsist on professionally made and maintained coils – preferably from the same people who
made you induction system.

Necessary information are required from clients for a professional service provided by Canroon: specific
application, workpiecematerial and dimensions (better with drawing and pictures).

Applications of induction heat treatment system/induction heating power supply:

Our induction heating machine can be applied in many metal industries, and suitable for nearly all metals

like copper, steel, iron, brass, aluminum, etc, with fast and uniform heating, and good performance,

induction heating is more and more popular in industry that requires for more automatic and new advanced

technologies.

See the following pictures of the working site:

HHT (hand held transformer)

Two control keys:

Trigger : pull to start heating, loose to stop heating;
Button : lock the trigger (pull the trigger and press the button), heating will be continuous.

Advantages of induction heat treatment system/induction heating power supply:

· High Temp. & Fast Heating

Able to reach >1000℃ within seconds.

· Fault Record

Fault codes will display and be recorded for reference, and system will respond with protection action like shutdown

once fault occurs such as open-loop output or short out.

· Self-Diagnosis

Once fault occurs, CR2100 will act with display of fault code, which was detailed explained in the manual book.

· Easy Operation

CR2100 can be easily start&stop manually, and scan on workpieces surface to do local heating. It can also be

integrated into robot arm to serve automatic line.

· Accurate Control

The interface offers two basic control modes to choose including temperature control and power control. Thus

brings the benefit of wide applicability and precise control of heating process.

· Customized Inductor

Canroon provided high-standard customized inductor to CR2100 induction generator, to help you deal with

workpieces of different shap&size.

· Easy Maintenance

Due to modular design, the maintenance will be easy and low-cost.
