High frequency induction heating equipment 60kw For Brazing Welding
/ Quenching heat treating equipment
Induction heating is efficient, easily controlled, uses no energy
when not heating, and puts the heat where
you want it, when you want it. No idle time, no massive refractories to heat, and close coupling
enables you
to use energy in the best possible way.

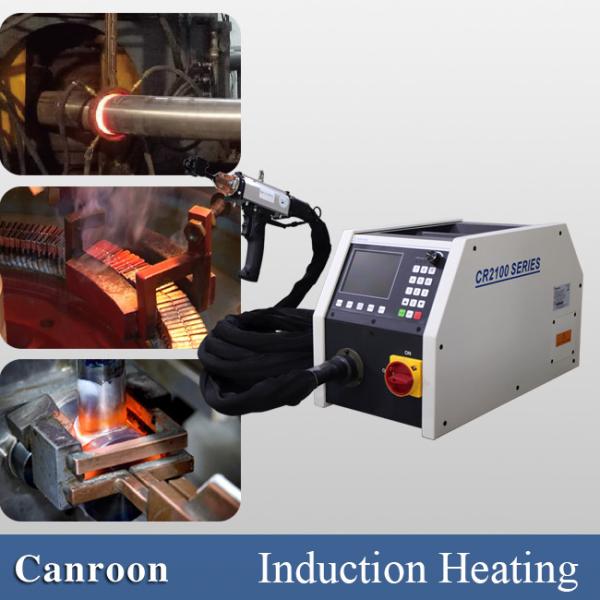

Canroon is China leading manufacturer of induction heating machine,
CR2100 series is our widely popular
both in China and oversea countries, digital control, modular
design, LED display panel, HHT, detachable inductor,
soft induction cable, water cooling system.
■ Power: 10KW-60KW
■ Output Frequency: 10-40Khz Power and frequency can be
custom-designed to be best suit customer's specific applications.
■ Using a new generation of control core, can output power to any
metal to achieve rapid heating, a wide range of applications,
multi-circuit protection, with power, frequency, voltage, current
display.
High frequency induction machine has many advantages over flame or
other brazing methods:
Canroon's Ultra-light and ultra-small handheld transformator,the
minimum weight is only 3Kg.
High-speed heating is competent for 1s constant temperature control.
Fast running mode,heating time can be less than 1s.
● safe,energy-saving.
● Easy to automate.
● For motor windings,do not damage insulation.
● High energy density,heating speed,greatly improve production
efficiency.
Brief introduction of High frequency induction heating equipment 60kw For Brazing Welding
/ Quenching heat treating equipment :
The new induction preheater CR2000 can be used as an air-cooled
system for temperatures up to 1450º F .
The preheater features multiple outputs, six control thermocouples to ensure uniform
heating, significantly faster
time to temperature than conventional heating, and an extremely easy-to-use operator interface that allows the
operator to program ramp and hold temperature times. It also tutors
the operator to achieve maximum output
from the induction coils.
Technical Parametersof High frequency induction heating equipment 60kw For Brazing Welding
/ Quenching heat treating equipment :
Model | Rated input voltage & frequency | Rated input power | Rated input current | Output frequency | Cooling water pressure / flow rate |
Dimension |
| CR2100-010B |
3-phase
/400V
(±20%)
50/60Hz
| 10KVA | 15A |
10~40KHZ
|
4~6 bar
≥12L/min
|
L: 62.1mm
W: 283mm
H: 350mm
|
| CR2100-015B | 15KVA | 22A |
| CR2100-020B | 20KVA | 30A |
| CR2100-025B | 25KVA | 37A |
| CR2100-030B | 30KVA | 45A |
| CR2100-035B | 35KVA | 53A |
| CR2100-040B | 40KVA | 60A |
| CR2100-050B | 50KVA | 75A | 4~6 bar ≥25L/min |
| CR2100-060B | 60KVA | 90A |
Application Ranges for High frequency induction heating equipment 60kw For Brazing Welding
/ Quenching heat treating equipment :
1. metal tube welding:such as steel tube, copper tube, plug welding and welding,and aluminum tube’s butt welding, sets.
2. alloy cutter welding:such as alloy turning tool, milling cutter,
planer, saw blades, reamer, boring knife.
3.Heat treatment for various electric tools, such as gear and axes.
4.Heat treatment for machine tools,such as lathe deck and guide
rail.
Applications of High frequency induction heating equipment 60kw For Brazing Welding
/ Quenching heat treating equipment :
Brazing, Annealing, Straightening, Hardening, Bolt Untighten,
Shrink Fitting, Paint/Coating Removal, etc.
see the following detailed application of induction brazing for
copper wire, heat exchanger, rotor coil, rotor bar,
short circuit ring, etc
Following is induction brazing of brass bar with Cu-Ag alloy as the
welding solder to make slip ring for
wide applications.
Product features of High frequency induction heating equipment 60kw For Brazing Welding
/ Quenching heat treating equipment :
With the introduction of the Brazing and Gears Preheating , this
simple and cost-effective heating process can be applied in the
following
applications to deliver fast and consistent heat:
- Welding fabrication and construction;
- Preheating of welds;
- Post-weld heat treatment;
- Coating removal;
- Shrink Fit and so on
Production line of High frequency induction heating equipment 60kw For Brazing Welding
/ Quenching heat treating equipment :
Packaging Details of High frequency induction heating equipment 60kw For Brazing Welding
/ Quenching heat treating equipment :
Electic induction welding equipment is packed with plastic film,
and fixed with rubber belt
Inside the case, covered with foamsOutside covered with customized
wooden case.
F&Q
1. Q: what is your MOQ?
A: We would like to do business with every clients. No matter how
many sets they order, we would try our best to
meet his or her demands.
2.Q: How can we guarantee quality?
A: Always a pre-production sample before mass production; Always
final Inspection before shipment;
3. Q: I am not so familiar with your machine now. I am not sure i
can use it well if i buy it from you.
A: Dont worry about this any more. With the machine,we will send
you a brochure with detail information with our
machine operation. If you need, Video is also available.
